Transformer Block FLOPs & Parameters Calculations

Notation

• \(B\): Batch size
• \(S\): Sequence length
• \(D\): Hidden dimension / Model dimension
• \(N\): Number of attention heads
• \(H\): Head dimension \((H = D/N)\)
• \(F\): Feed-forward hidden dimension (typically \(4D\))
• \(S_1\)/\(S_2\): Sequence length in attention context, \(S_1\)=of query & \(S_2\)=of key (often \(S\))
• \(\text{SiLU}\): Sigmoid Linear Unit activation (also known as Swish)
• \(\text{RoPE}\): Rotary Position Embeddings
• \([X \times Y]\): Matrix/tensor dimensions
• \(@\): Matrix multiplication operator
• \([X]\cdot[Y]\): Elementwise multiplication/dot-product
• \(L\): Number of layers

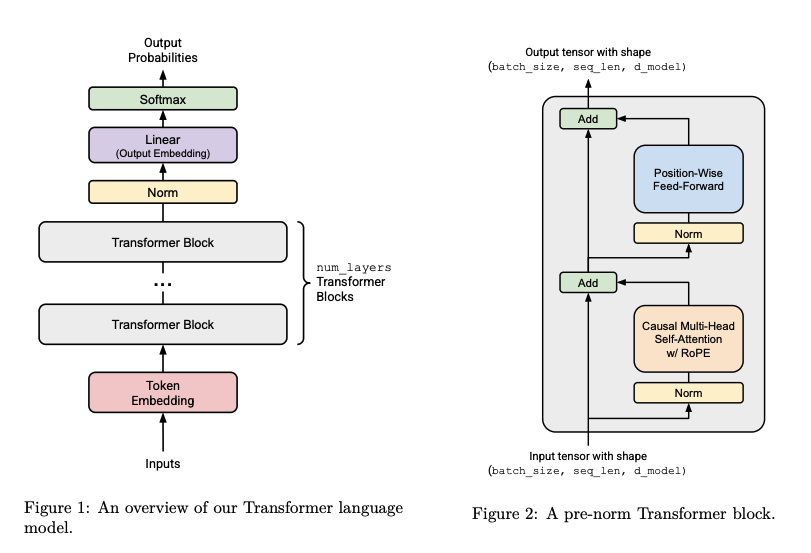

Transformer Block Operations

Input

\[X = [B \times S \times D] \quad \text{(Input tensor)}\]

RMS Normalization 1

\[\text{Rmsnorm}(x) = \text{normed\_x} * \text{gains}, \quad [B \times S \times D] \cdot [D] \rightarrow \quad [B \times S \times D]\]

Multi-Head Attention (MHA)

Attention applied on Rmsnorm output:

• (a) \(Q = W_q @ x\), \(\quad [D \times D] @ [B \times S \times D] \rightarrow [B \times S \times D]\)

• (b) \(K = W_k @ x\), \(\quad [D \times D] @ [B \times S \times D] \rightarrow [B \times S \times D]\)

• (c) \(V = W_v @ x\), \(\quad [D \times D] @ [B \times S \times D] \rightarrow [B \times S \times D]\)

• (d) Rearrange for multi-head attention(\(Q, K, V\)): \([B \times S \times D] \rightarrow [B \times S \times (N \cdot H)] \rightarrow [B \times N \times S \times H]\)

• (e) Apply RoPE to \(Q\) and \(K\) (element-wise) \(\rightarrow [B \times N \times S \times H]\)

• (f) Scaled Dot-Product Attention with Causal Mask: \(\begin{align} QK^T &= [B \times N \times S_1 \times H] @ [B \times N \times S_2 \times H]^T \rightarrow [B \times N \times S_1 \times S_2] \\ \text{output} &= \text{attn-weights} @ V = [B \times N \times S_1 \times S_2] @ [B \times N \times S_2 \times H] \rightarrow [B \times N \times S_1 \times H] \end{align}\)

• (g) Rearrange back: \([B \times N \times S \times H] \rightarrow [B \times S \times (N \cdot H)] \rightarrow [B \times S \times D]\)

• (h) Output Projection: \(X_{\text{out}} = W_o @ X_{\text{attn}}, \quad [D \times D] @ [B \times S \times D] \rightarrow [B \times S \times D]\)

RMS Normalization 2

\[\text{Rmsnorm}_2 = [B \times S \times D] \cdot [D] \rightarrow [B \times S \times D]\]

Feed-Forward Network (FFN)

1. Gate projection: \(\text{Gate} = W_1 @ X, \quad [D \times F] @ [B \times S \times D] \rightarrow [B \times S \times F]\)

2. Activation: \(\text{Gate} = \text{SiLU}(\text{Gate}) \quad \text{(element-wise activation)}\)

3. Linear projection: \(\text{Linear} = W_3 @ X, \quad [D \times F] @ [B \times S \times D] \rightarrow [B \times S \times F]\)

4. Gated multiplication: \(\text{Gated} = \text{Gate} \otimes \text{linear} \quad \text{(element-wise multiplication)}\)

5. Output projection: \(\text{Net} = W_2 @ \text{Gated}, \quad [F \times D] @ [B \times S \times F] \rightarrow [B \times S \times D]\)

FLOPs and Parameter Count

Forward Pass FLOPs

\[\begin{align} \text{Q, K, V Projections:} &\quad 3 \times [2 \cdot D \cdot (B \cdot S \cdot D)] = 6 \cdot B \cdot S \cdot D^2 \\ \text{Attention QK}^T\text{:} &\quad 2 \cdot B \cdot N \cdot S^2 \cdot H = 2 \cdot B \cdot S^2 \cdot D \\ \text{Attention weights @ V:} &\quad [2 \cdot S \cdot (B \cdot N \cdot S \cdot H)] = 2 \cdot B \cdot S^2 \cdot D \\ \text{O Projections:} &\quad 2 \cdot D \cdot (B \cdot S \cdot D) = 2 \cdot B \cdot S \cdot D^2 \\ \text{FFN Linear 1 (Gate + Linear):} &\quad 2 \times [2 \cdot D \cdot (B \cdot S \cdot F)] = 4 \cdot B \cdot S \cdot D \cdot F \\ \text{FFN Linear 2 (Net):} &\quad 2 \cdot F \cdot (B \cdot S \cdot D) = 2 \cdot B \cdot S \cdot D \cdot F \\ \textbf{Total FLOPs:} &\quad \boxed{8 \cdot B \cdot S \cdot D^2 + 4 \cdot B \cdot S^2 \cdot D + 6 \cdot B \cdot S \cdot D \cdot F} \end{align}\]

Parameter Count

\[\begin{align} \text{Q Projection:} &\quad W_q: [D \times D] = D^2 \\ \text{K Projection:} &\quad W_k: [D \times D] = D^2 \\ \text{V Projection:} &\quad W_v: [D \times D] = D^2 \\ \text{O Projection:} &\quad W_o: [D \times D] = D^2 \\ \text{FFN W}_1\text{:} &\quad [D \times F] = D \cdot F \\ \text{FFN W}_3\text{:} &\quad [D \times F] = D \cdot F \\ \text{FFN W}_2\text{:} &\quad [F \times D] = F \cdot D \\ \text{Total Parameters:} &\quad 4D^2 + 3DF \end{align}\]

Others/outside Transformer Block: Unembed Projection (LM Output Head)

\[\begin{align} \text{Unembed:} &\quad W_{\text{out}} @ X, \quad [D \times V] @ [B \times S \times D] \rightarrow [B \times S \times V] \\ \text{FLOPs:} &\quad 2 \cdot D \cdot (B \cdot S \cdot V) = 2 \cdot B \cdot S \cdot D \cdot V \\ \text{Parameters:} &\quad D \cdot V \end{align}\]
